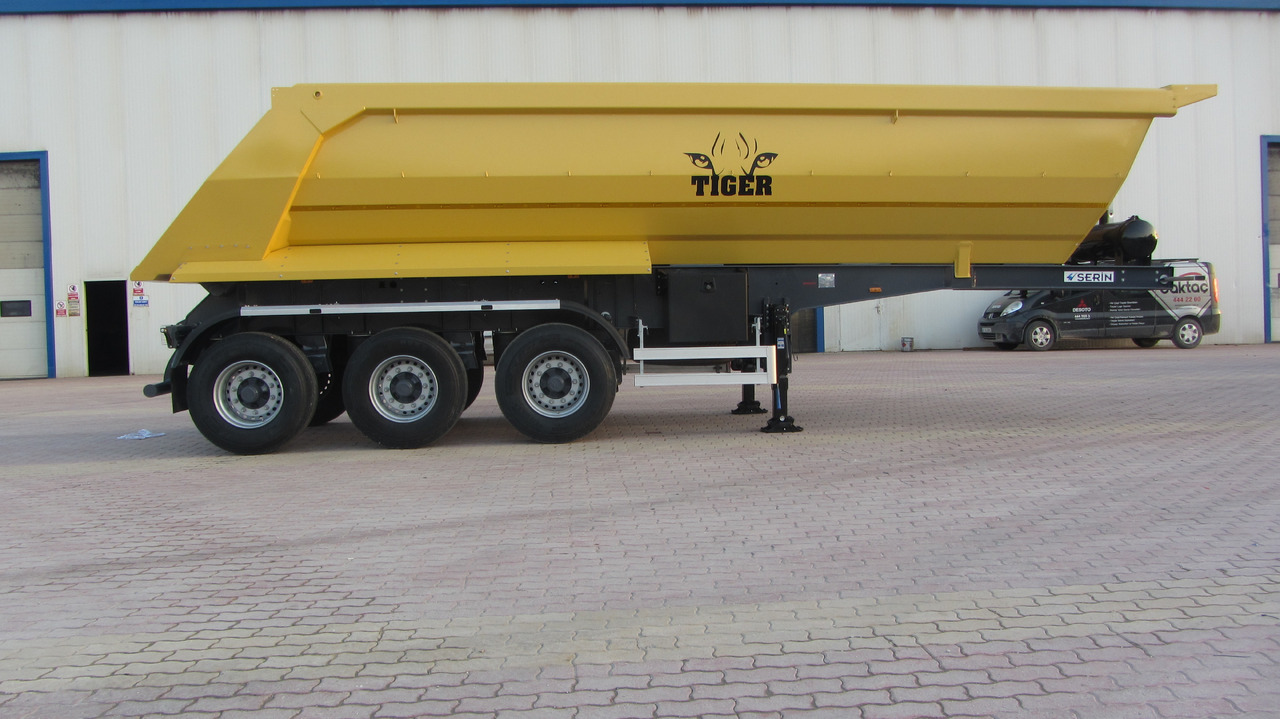

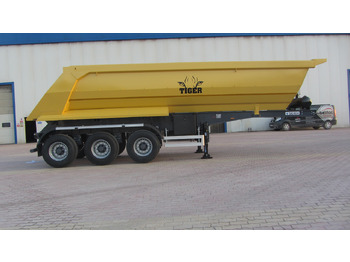

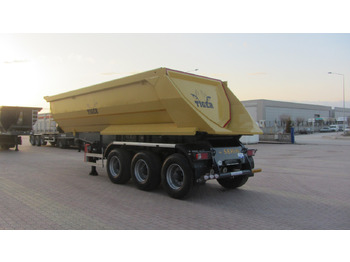

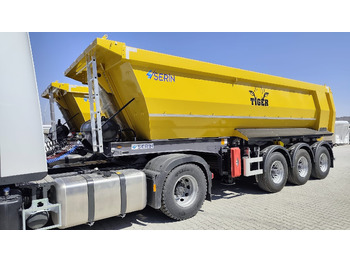

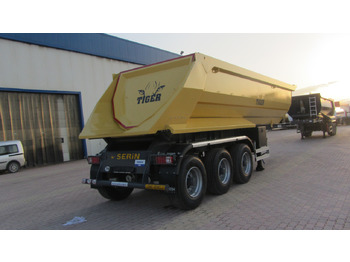

SERIN Tiger Hardox Tipper Semi Trailer 20 m³/24 m³ /28 m³ в лизинг
Опубликовано: 3мес. 8д.
Опубликовано: 3мес. 8д.
Опубликовано: 3мес. 8д.
Turkey, Büyükkayacık OSB Mh. Kuddusi Cd. No: 1 Selçuklu Konya / TÜRKİYEStandard Features
LENGHT: 7.300 mm
5TH WHEEL HEIGHT: 1.200-1.250 mm
EMPTY WEIGHT ( ±%3) 7400 kg

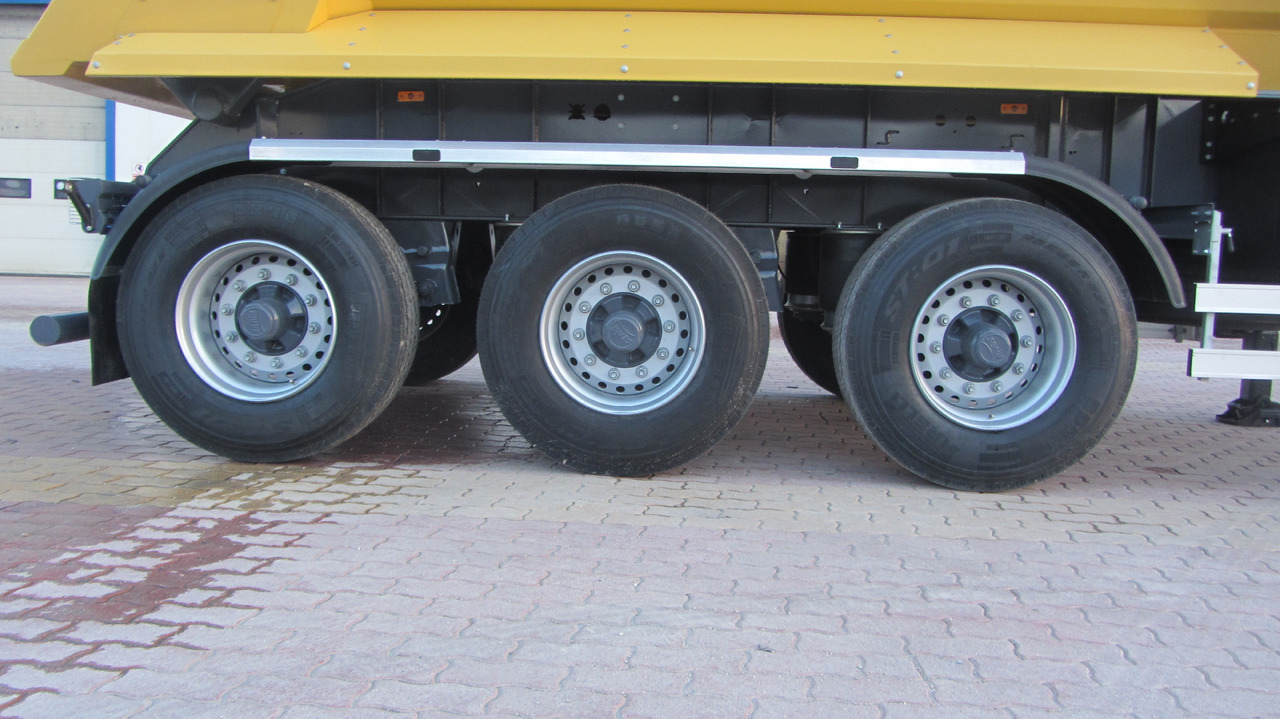

AXLES: 3x 9000 kg carrying capacity axle group, drum or Disc type, SERİN or SAF brand
CHASSIS: SERİN Chassis in compliance with 98/91 EEC standards, formed by automatic submerged arc welding method as I-section made of high-strength steel material specially produced for SERİN
BRAKES: Automatic Load Adjustment Valve RSS (Corning Safety System) Braking System in accordance with 71/320 EEC and 2002/78 EC Standards
LIFTING AXLE: Front axle lifting system that prevents tire wear and provides convenience in turns

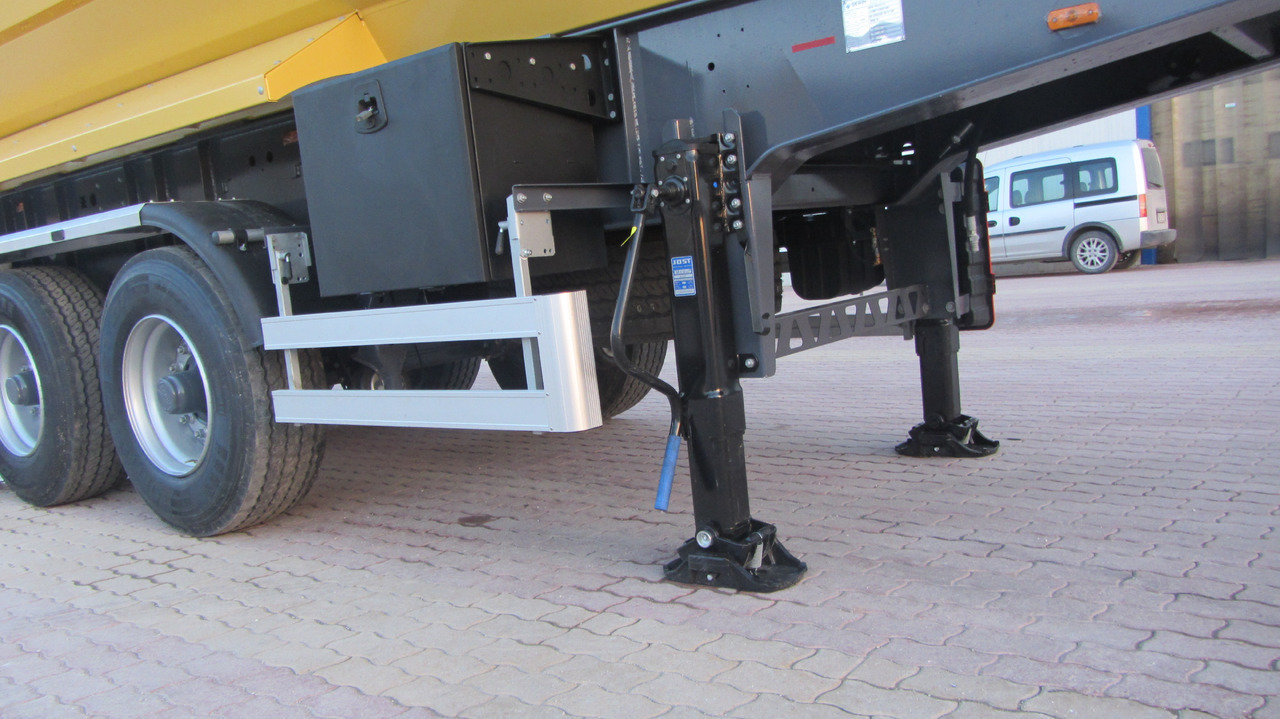

LANDING GEARS: 24000 kg carrying capacity,Double Speed, QRC
brand mechanical Landing Gears
KING PIN: 2” Flange type (SAF, JOST or Equivalent) King Pin in 94/20 EEC norms

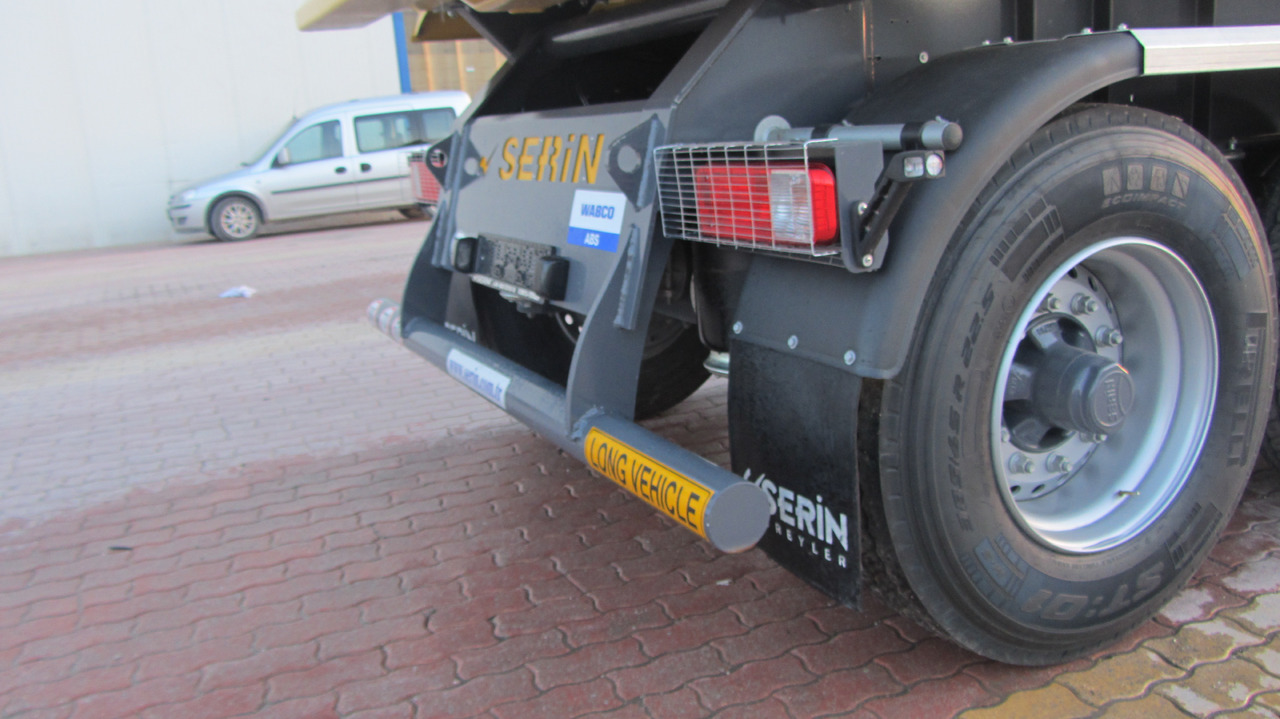

REAR BUMPER: Dipped galvanized (abrasion and corrosion resistant) movable rear bumper that complies with 70/221/ EC Standards and has been tested (compatible with Asphalt pouring machine Finisher)
SUSPENSION: Height adjusting system with Air Lowering and Lifting. Shock absorber elements that are compatible with the short scissor asphalt pouring machine finisher and limit excessive axle movement. System that automatically lowers the suspension when the tipper is lifted
ELECTRICAL SYSTEM AND LIGHTENING SYSTEM: 3 Amber colored lights on the sides, Tail lights, license plate light, triangle reflector. (Electrical system, complete E approved) 2 X 7 pin electrical socket *If the tipper is open or opened while the vehicle is running, it will be compatible with the visual warning system in the direct field of view of the driver, which gives an audible warning to warn the driver.
TOOL BOX: 60x50x50 cm plastic tool box
WATER TANK 30 Lt Plastic water tank
TIRES AND RIMES : 6+1 pcs 385/65/22,5 Tubeless tires, Steel Rims
SPEAR WHEEL CARRIER: 1 unit x Reductor type
UPPER STRUCTURE: Sides 4 mm, floor 5 mm, front wall and back cover 4 mm made of hardox 450 high strength steel

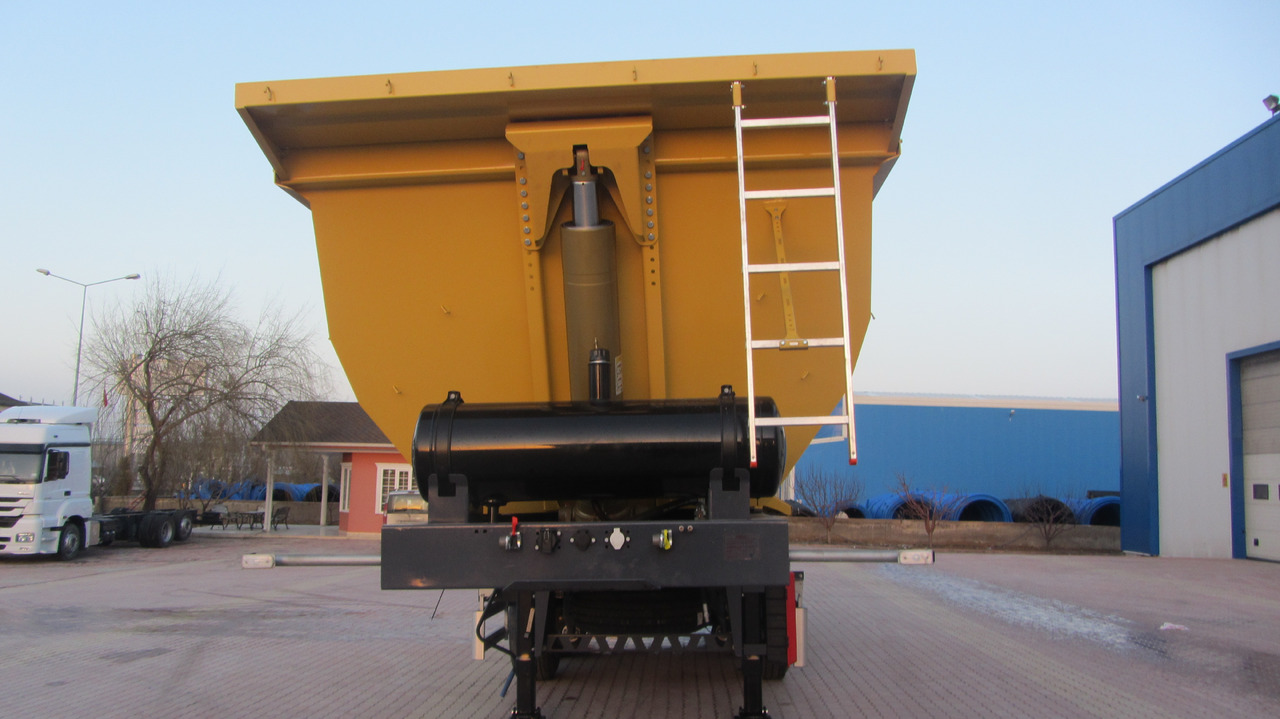

HYDRAULIC SYSTEM: 5-stage telescopic cylinder made of cold-drawn steel, limit control valve, diverter valve, 150 lt oil tank and high pressure resistant hydraulic hose
MUD COVER: Integrated with regulation-compliant 3 pcs plastic full mud covers on each side
MANOMETER: Manometer showing the axle group load according to the pressure in the airbag
