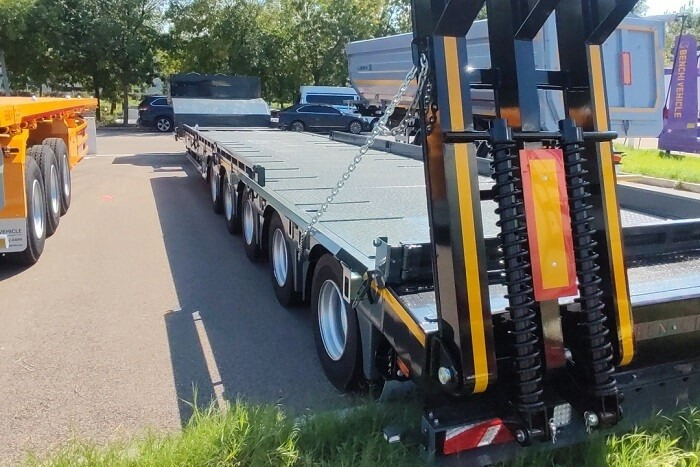

Низкорамный полуприцеп FGM 37 ALL- EXTENDABLE FRAME

Semitrailer low loader 3 pneumatic axles extendable up to 20 meters

MODEL: FGM 37 F13-2 ALL

Areas of use: construction machines / farming machines/lifting vehicles/industrial parts.

• N.3 axles with pneumatic suspensions

• 3rd axle self-steering

• Extendable loading platform from gooseneck to 1st axle for 6,000 mm.

• Gross weight 38,000 kg - Pay-load 29,000 Kg - Tare weight 9.000 Kg.

• Total length from 13850 mm to 19850 mm

• Low floor length (gooseneck to rear ramps) from 10040 mm to 16040 mm.

• Width 2.550mm.

• Height of charge zone 870mm

• Braking system EBS

• N.6 brake levers self-adjusting

• N.1 pneumatic valve for adjustment height of load

• N.4 side pull winches + hooks placed every meter suitable for heavy ropes

• Predisposition for the assembling of loading ramps on gooseneck

• Predisposition for the assembling of the front hydraulic pull winch

• Hydraulic extendable rear ramps 2200 x 650 mm

• Surface treatment: Sandblasting+ Painting; color option at customer’s choice

• N. 12 tires 235/75 r 17.5 - Steel wheels

• N.2 tool boxes on gooseneck

• Warranty program 2 years

Note: those listed are the standard components of this trailer to find out more accessories please press the button “Configure this product” and select the options that best satisfy your needs.
