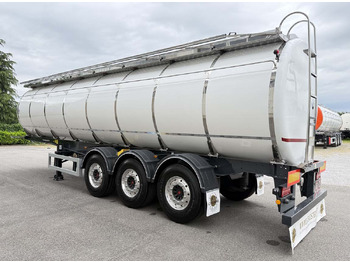

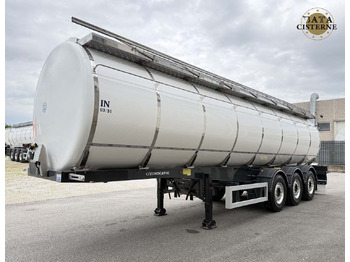

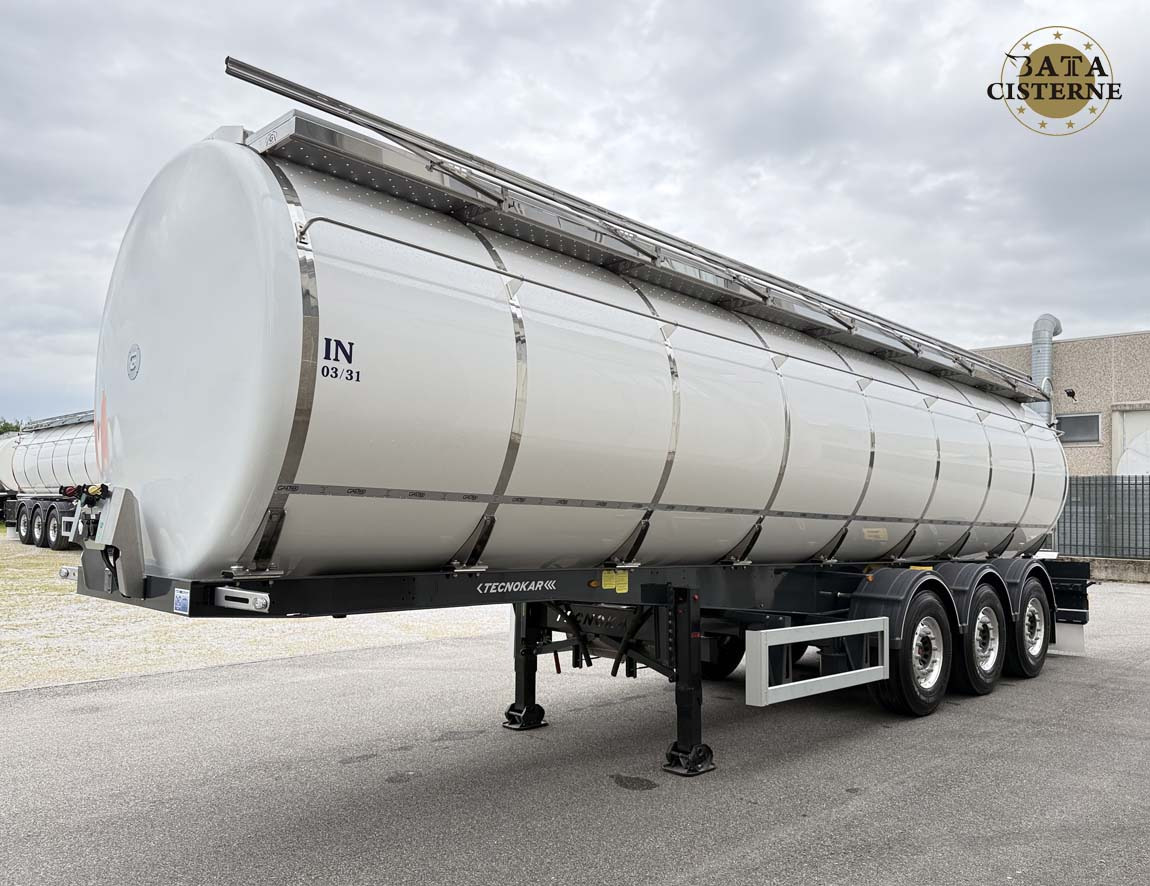

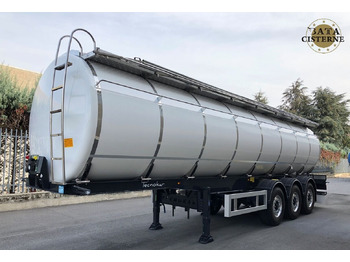

Новый Полуприцеп-цистерна для транспортировки пищевых продуктов BATA CISTERNA IN PRONTA CONSEGA-NEW FOOD TANK READY FOR DELIVERY

Tanker model Bata/25 for transporting food liquids in accordance with ATP

 Capacity 32,000 lt

 3 compartments 12,000-6,500-13,500 lt

 Cylinder in mirror-polished AISI 304 stainless steel

 Insulated in accordance with ATP with draft release and certification

 Bottom lining in white fiberglass

 Washing system with 5 spheres and 5 independent butterfly valves with rear descent on the right and drainage tap, another tap on the washing pipe above the tank between the 2nd and 3rd manhole

 3 hatches with insulated covers and fixing with 1 wing nut and double-acting valves

 3 rectangular wells with insulated covers

 Drainage pipes in each well

 3 bottom valves from 100mm with flywheel control from above

 Single 100mm exhaust pipe with central rear outlet with respective butterfly valve DIN 100 pitch and the closing cap

 Left-hand side aluminum walkway with stainless steel railing

 Stainless steel ladder with fold-down, rear left-hand side

 Polished stainless steel side guards with 90° final closure

 All stainless steel bolts

 White side reflector strips and straight red rear

Tecnokar standard 10.50m semi-trailer for tanker

• Length 10.50m

• Bare carbon steel frame for tanker

• 2’’ towing pin removable from below, CE approved

• N.3 SAF axles with disc brakes Ø 430 Offset 120

• Liftable 1st axle and 3rd fixed axle

• ABS braking system, EBS 2S/2M with anti-tip system

• TPMS (European regulation on tire pressure monitoring mandatory from July 2024)

• Pneumatic suspension with trim control valve

• SAF two-speed support trolley

• Electrical system compliant with EEC standards with front and rear marker lights and LED side lights

• Manual raise/lower device

• Braking system, pneumatic parking brake

• Pneumatic loading platform height adjustment device with RTR automatic suspension adjustment mechanism

• Alloy tank

• Wrap-around mudguards in thermoplastic material complete with splash guards and stainless steel supports

• Chocks and chock holders

• Spare wheel holder with winch

• Reflective tables

• All stainless steel bolts

• N.6 Continental 385/65 R 22.5 tires

• N.6 Alcoa LVL ONE semi-gloss aluminum rims (11.75x22.5”)

• Alloy side guards

• Rear underrun protection bar compliant with EC directives

• Semi-trailer: frame painting after sandblasting, application of cold organic zinc primer and subsequent two-component epoxy primer and application of polyurethane and R.E. enamel in silver RAL 9006 (feet and hubs in frame color) + coat of final transparent, axles and suspension supports black RAL 9005
