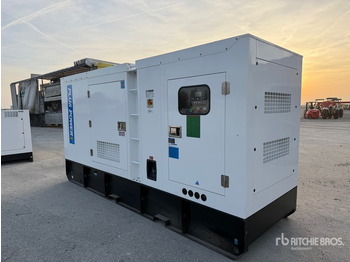

Новый Электрогенератор maxus HR-250GF

TESTING with MAXUS

Every tractor or machine you purchase from us can be tested within 14 days from the delivery date. This time allows you to verify the equipment in your working conditions.

MAXUS SERVICE

✅ 100+ cooperating stationary services and workshops

✅ 100+ cooperating mobile services

✅ 100+ cooperating towing services

Become our Customer – BRAND AMBASSADOR of MAXUS

? Very HIGH earnings!

Short on cash?

No problem!

Order your generator today and take advantage of LEASING, LOANS, or an Invoice with deferred payment.

Additionally, we offer:

✔ Credit based on a statement

✔ No BIK or KRD database verification

✔ Own contribution required

Generator Model HR-250GF – Technical Specifications

? Rated Voltage (V): 400/230

? Frequency: 50Hz/60Hz

? Power Factor: 0.8

? Type: 3P 4W

? Output Power (kW/kVA): 250/312.5

? Rated Current (A): 450

? Dimensions (mm): 2500 × 860 × 1700

? Gross Weight (kg): 1400

Diesel Engine Specifications

✔ Engine Model: Ricardo Steyr 6126ZLD-1

✔ Manufacturer: Weifang Ricardo

✔ Number of Cylinders: 6L

✔ Cylinder Arrangement: In-line

✔ Cycle: Four-stroke

✔ Aspiration: Turbocharged

✔ Compression Ratio: 16:1

✔ Bore × Stroke: 126mm × 135mm

✔ Displacement: 6.75 liters

✔ Rotation Direction: Clockwise (front view)

✔ Rated Power (kW/kVA): 260/325

✔ Generator Type: Mechanical

✔ Lubrication Oil Capacity (L): 20

✔ Rated Fuel Consumption (L/h): 33.5

Pump Types:

✔ Oil Pump Type: Single gear type

✔ Displacement/Speed (L/min/rpm): 62/2800

✔ Water Pump Type: Centrifugal type

✔ Pump Speed (rpm): 2800

✔ Injection Pump Type: In-line piston type

Operating Temperatures & Pressures:

✔ Oil Temperature: ≤ 95 ℃

✔ Cooling Water Temperature: ≤ 90 ℃

✔ Oil Pressure: 0.3 ~ 0.5MPa (≤ 0.01MPa at idle speed)

✔ Fuel Injection Pressure: 20 + 1.0MPa

Fuel Consumption at Different Loads:

✔ 100% Load (Prime Power): 218g/kW.h

✔ 75% Load (Prime Power): 207g/kW.h

✔ 50% Load (Prime Power): 220g/kW.h

Alternator Specifications

✔ Brand: Brushless/Brushed Alternator

✔ Model: HJI-250

✔ Rated Power (kW/kVA): 250/312.5

✔ Connection Type: 3-phase, 4-wire, Y-connection

✔ Number of Phases: 3

✔ Number of Bearings: 1

✔ Power Factor: 0.8

✔ Protection Level: IP23

✔ Altitude Capability: ≤ 1000m

✔ Excitation Type: Brushless/self-excited

✔ Insulation Class, Temperature Rise: H/H

✔ Telephone Influence Factor (TIF): < 50

✔ Voltage Regulation, Steady State: ≤ ±1%

✔ THF (Total Harmonic Factor): < 2%

✔ Alternator Efficiency: 95.20%
