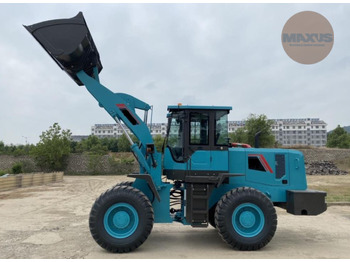

Колёсный погрузчик

Performance Description: Weichai emission engine, optimized torque, converter matching, significantly increases traction while reducing fuel consumption by up to 5%.

18 MPa working pressure in the hydraulic system, efficient energy saving.

Higher weight and payload capacity.

Operating temperature range: -20°C to +43°C.

Installation of additional shock absorbers for improved cabin sealing and reduced vibration and noise.

Technical Parameters:

Performance

Rated load capacity: 3000 kg

Total weight: 10000 kg

Bucket capacity: 1.8-2.5 m³

Maximum traction force: 98 kN

Maximum breakout force (inch): 120 kN

Maximum gradeability: 30°

Maximum dumping height: 3100 mm

Maximum dumping reach: 1130 mm

Overall Dimensions

(L × W × H): 7120 × 2375 × 3230 mm

Minimum turning radius: 5464 mm

Engine

Engine model: Deutz WP6G125E22

Engine type: Vertical, inline, water-cooled, 4-stroke diesel engine

Cylinder diameter × Stroke: 6-108 × 125 mm

Rated power: 92 kW

Maximum torque: 500 N·m

Minimum fuel consumption ratio: ≦210 g/kW·h

Transmission System

Torque converter: YJ315-X

Gearbox mode: Power take-off shaft

Normal gear engagement: Simple forward gear

Forward gears: 4, Reverse gears: 2

Maximum speed: 38 km/h

Axles

Main reduction spiral gear

Bevel gear reduction by 1 level

Planetary reduction gear ratio: 1

Wheelbase: 2740 mm

Maximum ground clearance: 400 mm

Hydraulic System

Working pressure: 18 MPa

Total cycle time: 25 seconds

Bucket cycle time: 9.3 ± 0.5 s

Braking System

Main brake: Pneumatically assisted disc brake on 4 wheels

Parking brake: Manual disc brake

Tires

Tire specification: 17.5-25

Front tire pressure: 0.4 MPa

Rear tire pressure: 0.35 MPa
