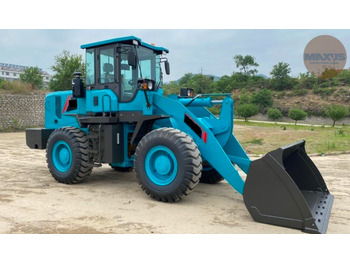

Новый Колёсный погрузчик maxus Wheel loader 10t

Weichai emission engine, optimized torque, converter matching, significantly increases traction while reducing fuel consumption by up to 5%.

18 Mpa working pressure in the hydraulic system for efficient energy savings.

Higher weight and load capacity.

Operating temperature -20+43°C.

Installation of additional dampers improves cabin sealing, reducing vibrations and noise.

Technical Specifications

Performance

Rated load capacity: 3000 kg

Total weight: 10,000 kg

Bucket capacity: 1.8–2.5 m³

Maximum traction force: 98 kN

Maximum disconnection force: 120 kN

Maximum tilt capacity: 30°

Maximum dump height: 3100 mm

Maximum dump reach: 1130 mm

Overall dimensions (L×W×H): 7120 * 2375 * 3230 mm

Minimum turning radius: 5464 mm

Engine

Engine model: Deutz WP6G125E22

Type: Vertical, in-line, water-cooled, 4-stroke diesel engine

Cylinder diameter*stroke: 6-108 * 125

Rated power: 92 kW

Maximum torque: 500 N·m

Minimum fuel consumption rate: ≦210 g/kW·h

Transmission System

Torque converter system: YJ315-X

Gearbox type:

4 forward gears, 2 reverse gears

Maximum speed: 38 km/h

Axles:

Main spiral reduction

Bevel gear, 1-step reduction

Planetary reduction ratio: 1

Wheelbase: 2740 mm

Maximum ground clearance: 400 mm

Hydraulic System

Working pressure: 18 MPa

Total cycle time: 25 seconds, 9.3 ± 0.5 s

Braking System

Main brake: Pneumatically assisted disc brake on all 4 wheels

Parking brake: Manual disc brake

Tire Specifications

Tire type: 17.5-25

Front tire pressure: 0.4 MPa

Rear tire pressure: 0.35 MPa
